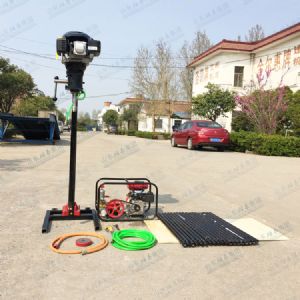

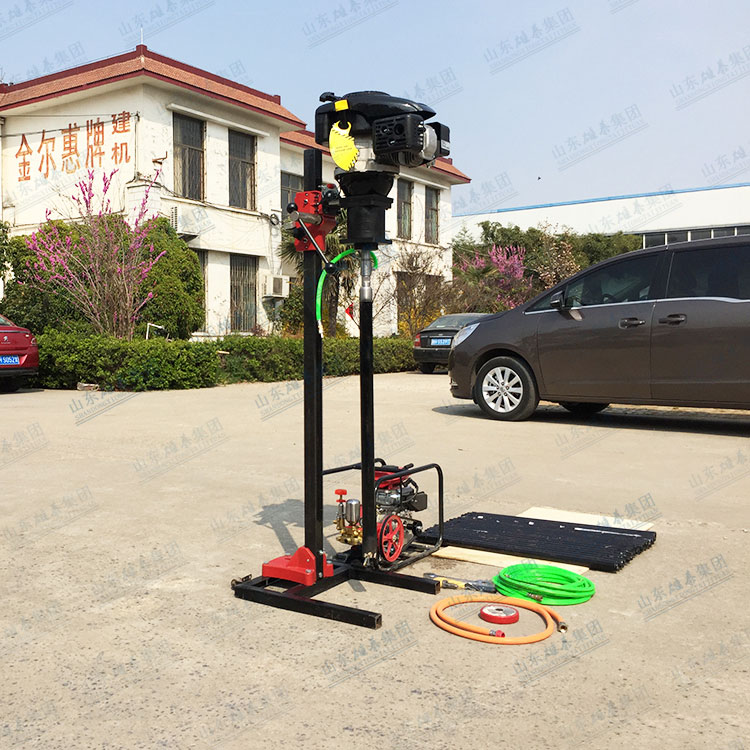

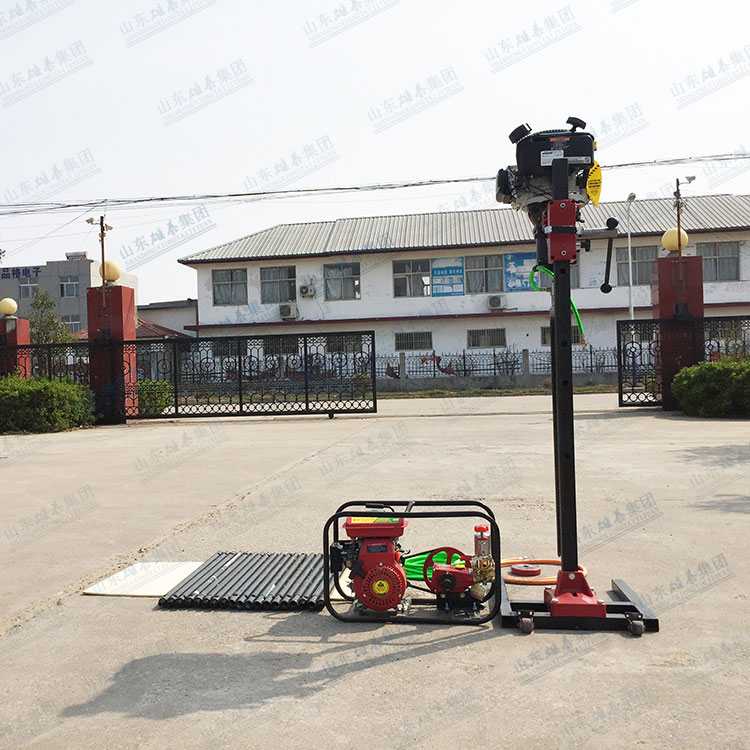

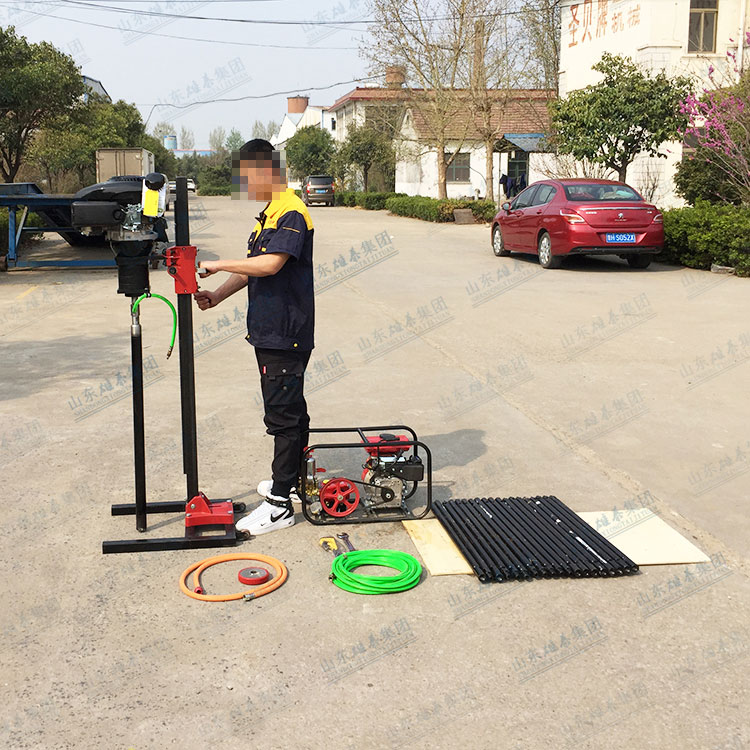

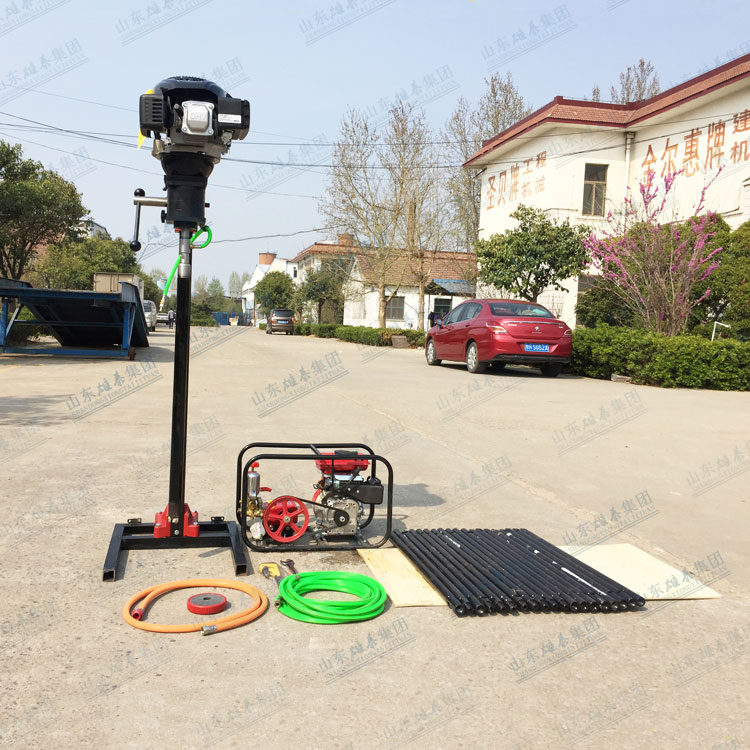

I. Introduction of BZ-30L vertical backpack drill
The BZ-30L vertical knapsack drill is a portable core drill that can be disassembled and used mainly for mineral exploration, shallow sampling of geochemical exploration, vein exploration, geological research, engineering investigation, oil field investigation, hydraulic engineering investigation, highway engineering investigation, tunnel lining, invert detection, etc. The kohler tiny portable core drilling machine is designed for mineral investigation, field survey, geological study and prospectors and tailor-made, through our decades of experience, and in dozens of countries and regions in the world of the field validation, continuous improvement and improve the quality of our products and believe that this tool will be helpful for your work. Bz-30l vertical backpack core drill main features: compact structure, detachable, small volume, light weight, easy to carry; Imported brand gasoline engine, high horsepower, guaranteed depth of drilling; With a drill frame, field work is more convenient and safe.
Ii. Technical parameters of BZ-30L vertical backpack core drill
| 項目 | 參數 | 項目 | 參數 |
| 動力品牌 | 科勒 | 變速比 | 7:1 |
| 動力 | 7.75馬力 | 傳動方式 | 無級變速 |
| 燃油箱容積 | 1400ml | 鉆桿尺寸 | 32*800mm |
| 傳動方式 | 齒輪傳動 | 最大深度 | 30m |
| 啟動方式 | 拉繩啟動 | 孔徑 | 32~108mm |
| 離合模式 | 自動離合 | 主機凈重 | 67kg |
| 取芯模式 | 回轉式 | 主機尺寸 | 550*450*420mm |
| 終孔轉速 | 540r/min |
| 項目名稱 | 規格 | 單位 | 數量 |
| 鉆機（含鉆架） | BZ-30L | 臺 | 1 |
| 鉆桿（含公母接手） | Φ32*800 | 根 | 28 |
| 腦袋 | Φ60 | 個 | 1 |
| 巖心管 | Φ60*600 | 根 | 1 |
| 合金鉆頭 | Φ60 | 個 | 1 |
| 金剛石鉆頭 | Φ60 | 個 | 1 |
| 汽油高壓泵 | 臺 | 1 | |
| 吸水管 | 根 | 1 | |
| 吸水濾網 | 個 | 1 | |
| 回水管 | 根 | 1 | |
| 供水管 | 根 | 1 | |
| 管鉗 | 把 | 1 | |
| 墊叉 | 把 | 1 | |
| 扳手 | 把 | 1 | |
| 井口板 | 個 | 1 | |
| 火花塞 | 個 | 1 | |
| 管口墊圈 | 套 | 1 | |
| 水封 | 套 | 1 |
